A turret test-point carrier PCB for the ECEN 442 DSP motor-control lab. Top and bottom ground pours are tied together with stitching vias. I also designed a holder for the board in SolidWorks.
The project is finished. The fabricated boards are assembled and mounted in their holders for the lab benches.
I also repair the lab's motor test benches. I trace each fault to its root cause, do SMT and through-hole rework, and run functional tests with Code Composer Studio on a TI C2000 to confirm the fix.

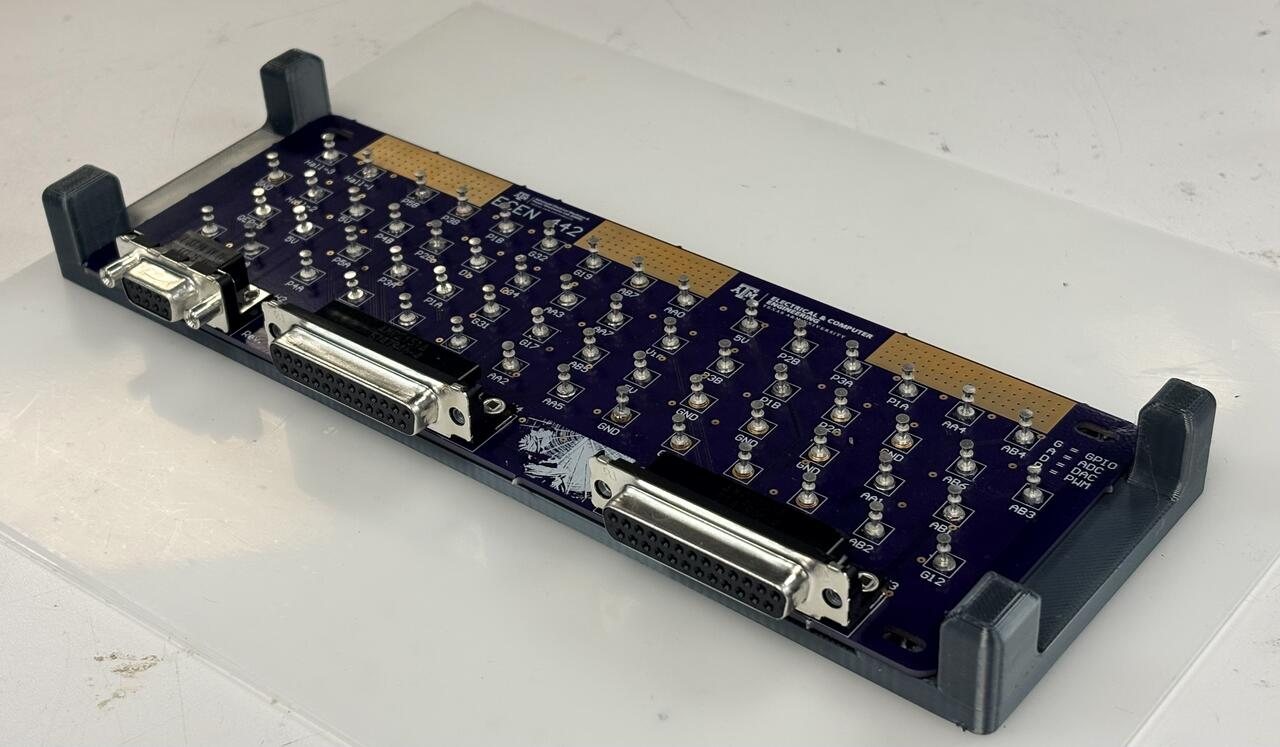

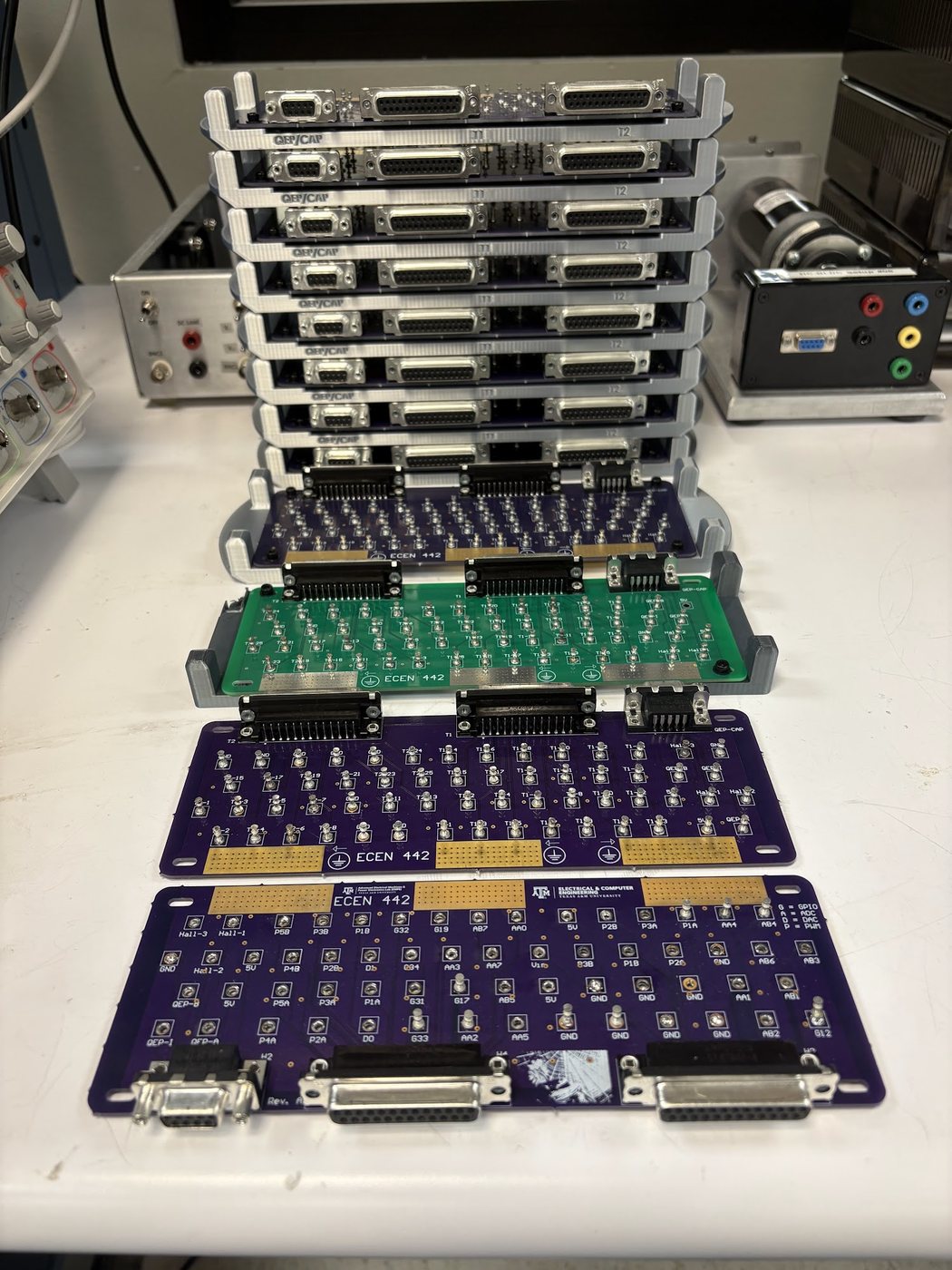

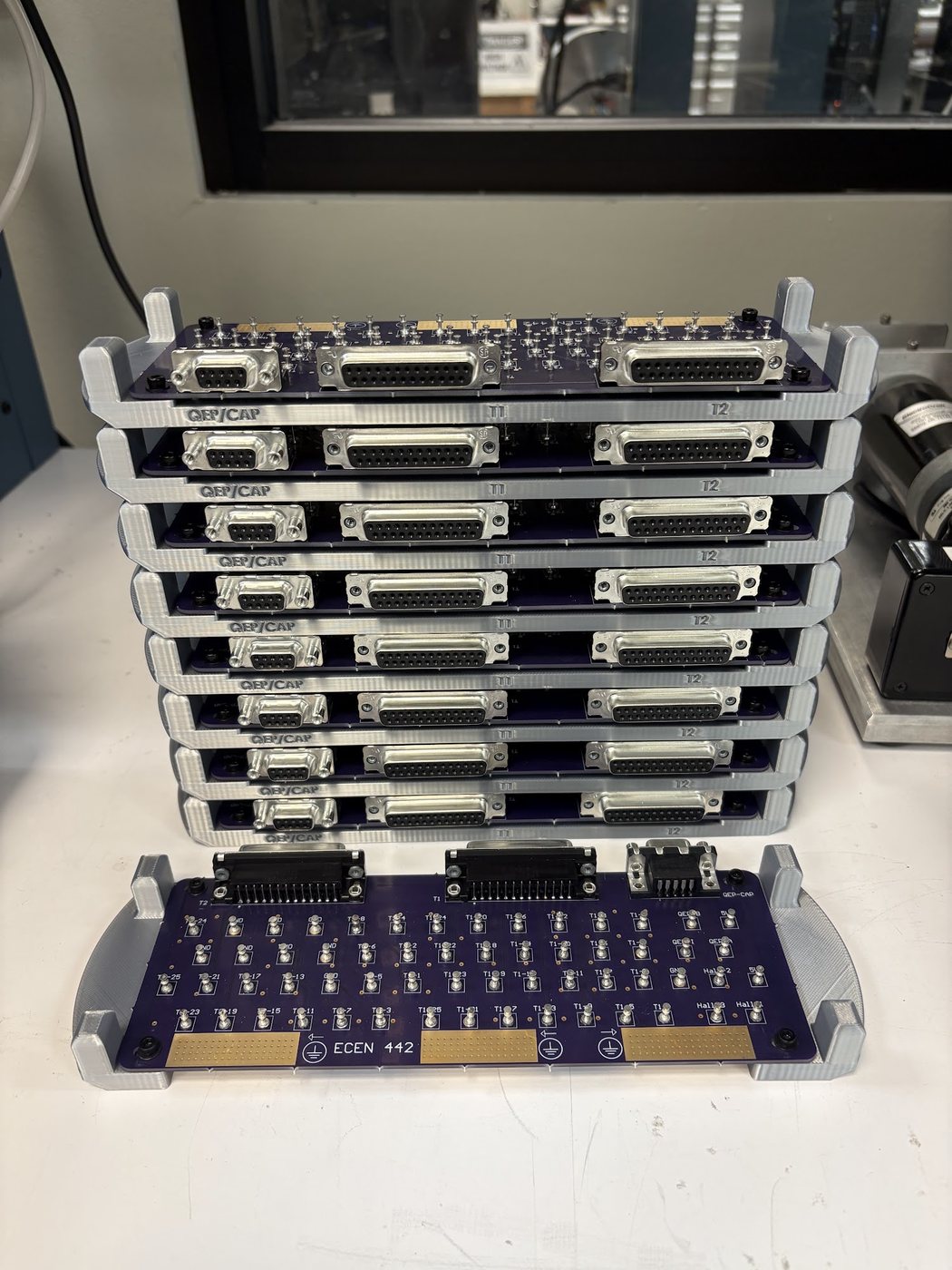

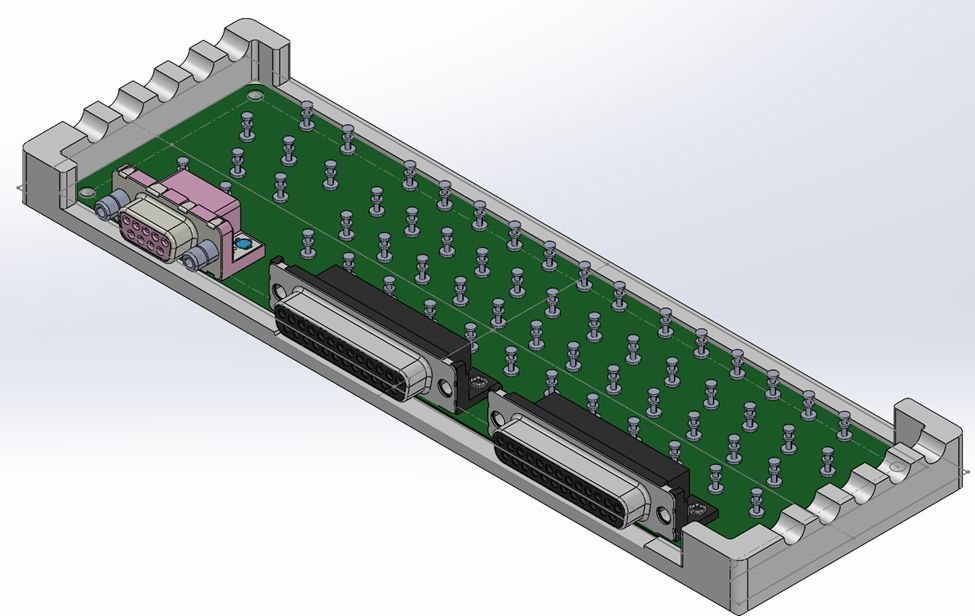

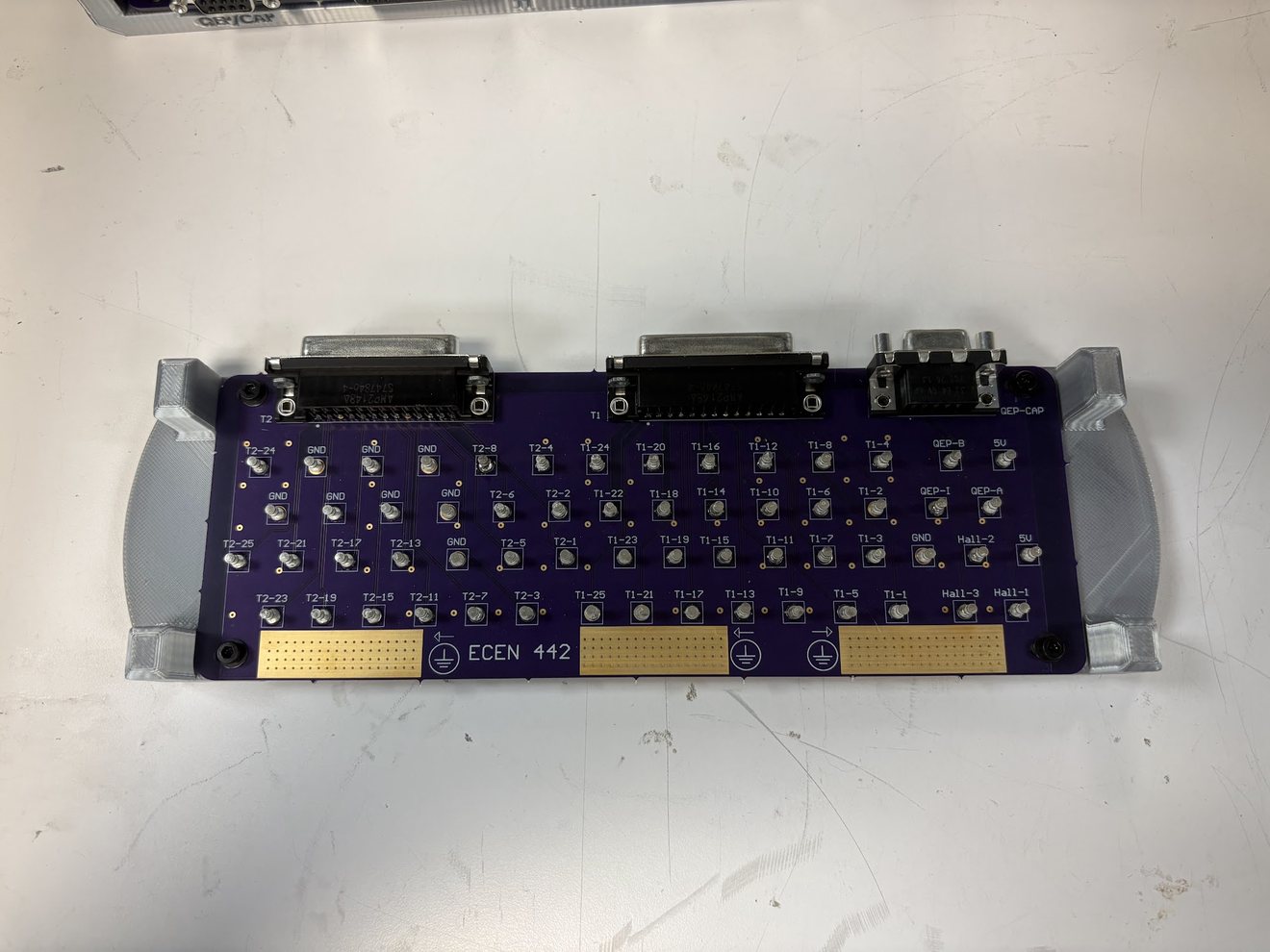

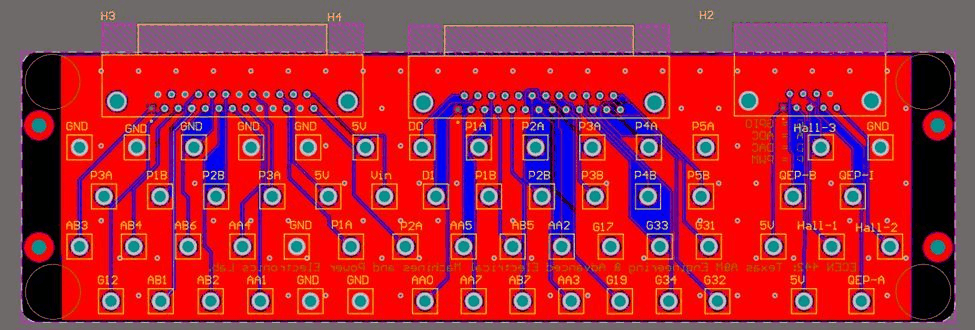

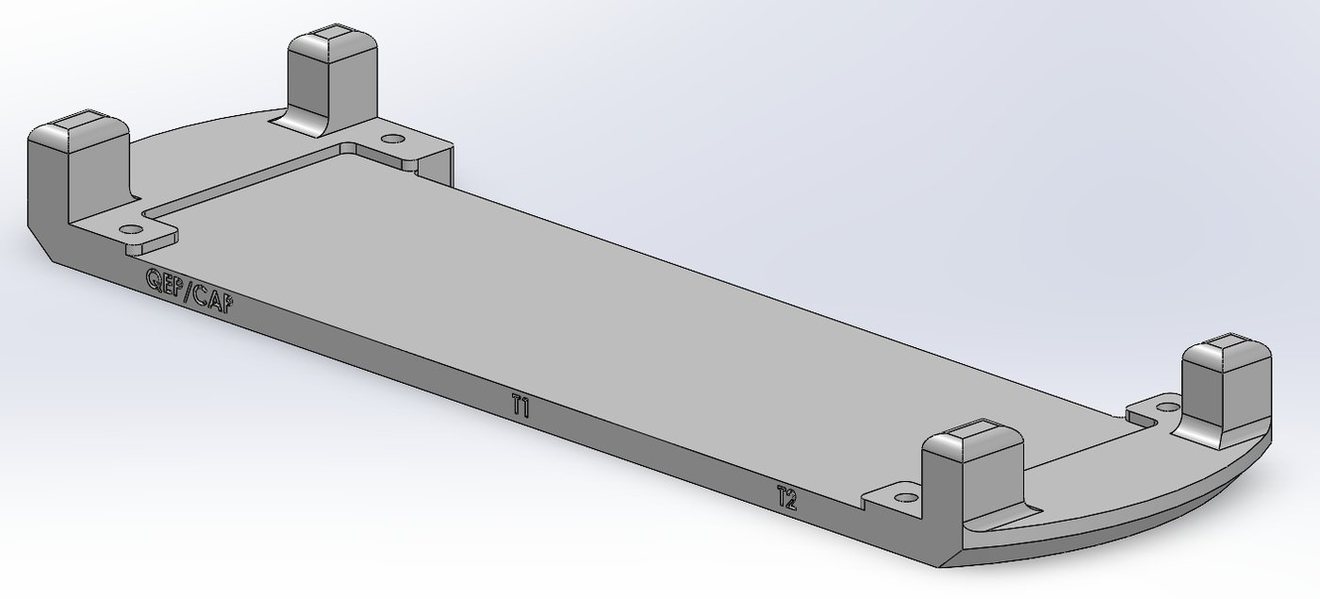

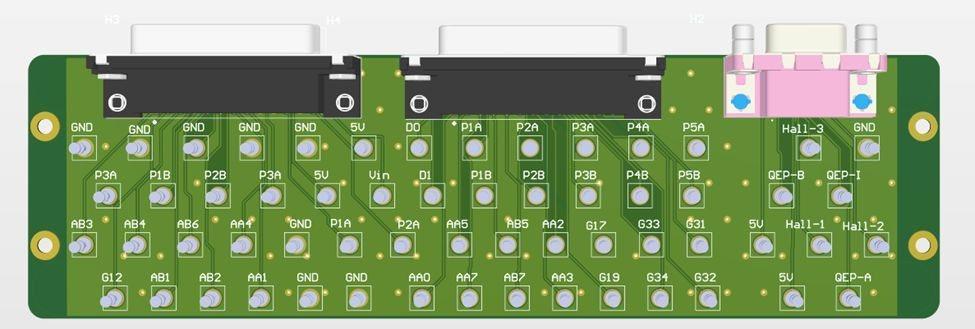

A finished board in its printed holder, with the DB connectors along the top and labelled test points for each lab signal.The finished run of boards stacked in their holders, ready for the lab benches.The stack of finished boards on the bench, with more boards laid out in front.A fabricated board seated in its holder, seen from the connector end.SolidWorks assembly of the board seated in its holder, with the DB connectors and test-point posts modelled.3D render of the board: labelled test points for GND, 5 V, PWM, ADC, QEP and Hall signals, with the three DB connectors along the top.PCB layout with the top and bottom ground pours tied together by stitching vias.Schematic: the DB connectors break each lab signal out to its own turret test point.The holder in SolidWorks, with clips at each end that grip the board edges.
